Features



The software includes a band scope (All Yaesu except FT-980 FT-767GX - all Kenwood except R-5000
TS-440/940 TS-711/811, Icom : IC-R9000 IC-746 IC-756Pro/2 IC-R75 IC-R8500 and IC-706MKIIG only).

This feature allows the user to :

  • check for the spectrum activity
  • scan a particular portion of the spectrum and pause on busy frequencies (adjustable threshold)
  • scan for a long period of time (signal vs. frequency + time analysis)
  • automatically refresh the display depending on frequency choices
  • use their mouse for quick graphic tuning
  • intuitive interface - resizable window - zoom...
  • interface the sound recorder and the scanning feature of the bandscope

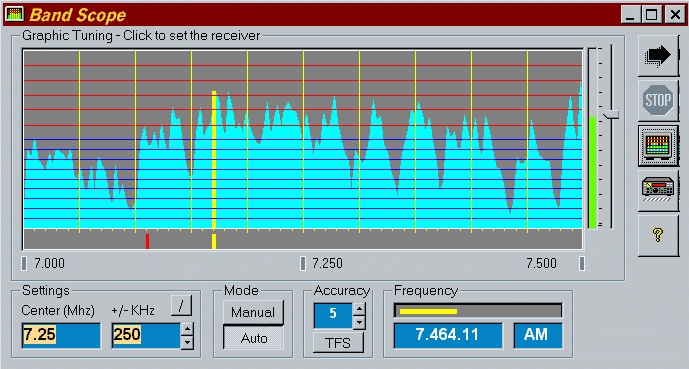

Signal vs. time analysis



2D Analysis

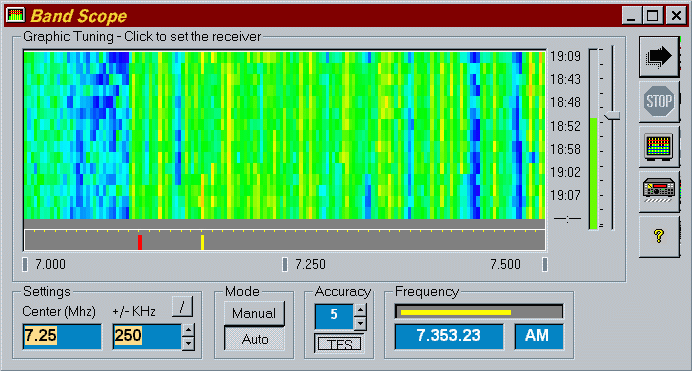

Signal vs. frequency & time analysis



3D Analysis
